Rebound Hammers
Precision non-destructive testing (NDT) instruments for evaluating the compressive strength and uniform quality of in-situ concrete, mortar, and masonry per IS 13311 (Part 2), ASTM C805, and EN 12504-2.
Concrete Test Hammer Range
Authorized supplier of Langry concrete test hammers. Each hammer is engineered with precision internal springs, hardened wear-resistant aluminum casings, and calibrated against certified test anvils.

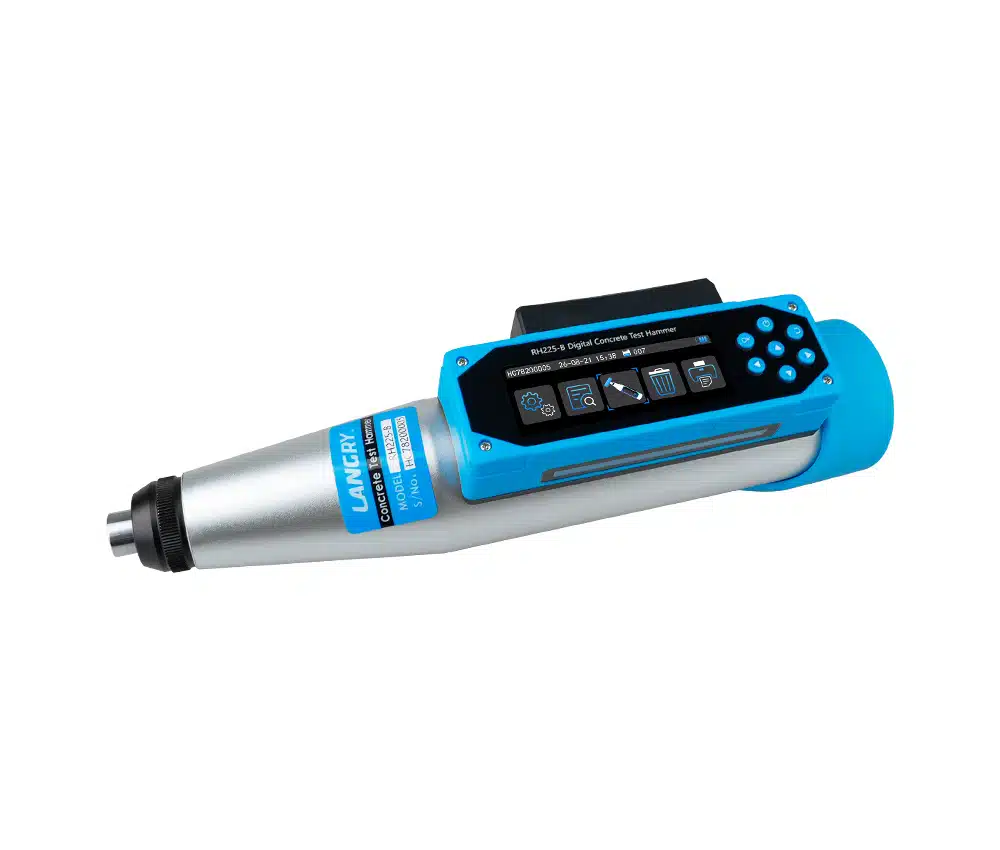

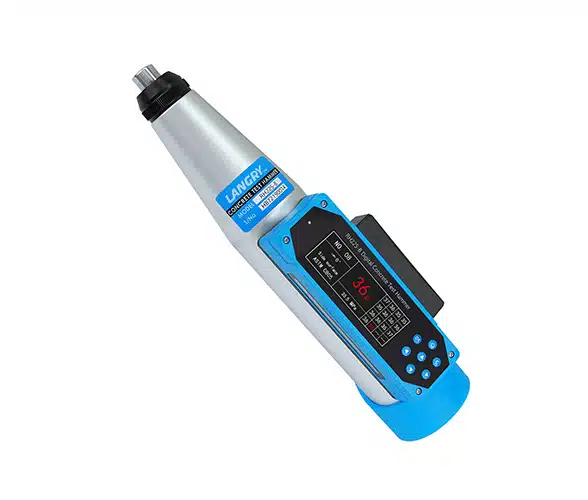

Langry RH225-B Integrated Digital Rebound Hammer
Advanced patented digital concrete hammer featuring non-contact electromagnetic sensor technology, integrated 2.8" high-contrast OLED display, voice prompt reporting, and 1,000 standard component memory storage.
- Impact Energy: 2.207 J (Type N)
- Measuring Range: 10 – 60 MPa
- Screen: 2.8" OLED Dot Matrix (256×64)
- Power: 3.7V / 3200 mAh Rechargeable Li-ion
- Calibration on Anvil: 80 ± 2
- Connectivity: Built-in Bluetooth field printer support

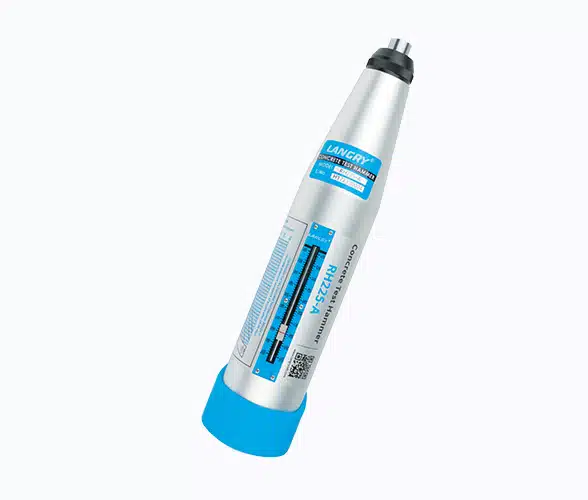

Langry RH225-A Mechanical Concrete Test Hammer
The industry-standard mechanical rebound hammer for non-destructive compressive strength estimation of normal structural concrete. Features an ergonomic super-hard aluminum alloy shell and precision pointer slider.
- Impact Energy: 2.207 J
- Measuring Range: 10 – 60 MPa
- Pointer Friction: 0.65 ± 0.15 N
- Spring Stiffness: 785.0 ± 30.0 N/m
- Calibration on Anvil: 80 ± 2
- Standards: IS 13311-2, ASTM C805, EN 12504-2

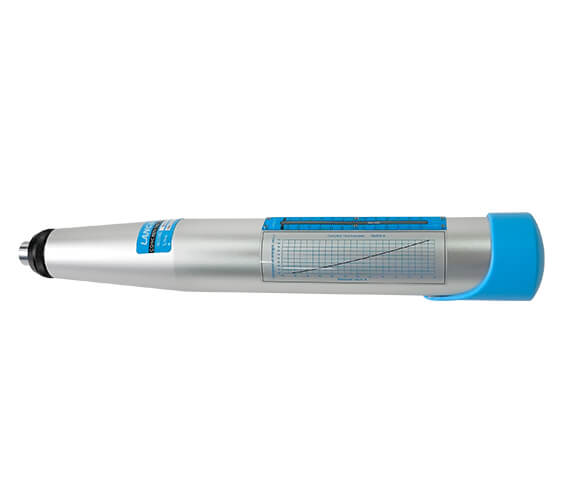

Langry RH450-A High-Strength Concrete Test Hammer
Engineered specifically for testing high-strength structural concrete elements where standard 2.207 J hammers saturate. Ideal for tall buildings, highway bridges, pre-stressed girders, and heavy civil structures.
- Impact Energy: 4.500 J
- Measuring Range: 60 – 100 MPa
- Spring Stiffness: 900 ± 40 N/m
- Operating Spring Length: 106 ± 0.5 mm
- Spherical Radius: 35 ± 1.0 mm
- Calibration on Anvil: 88 ± 2

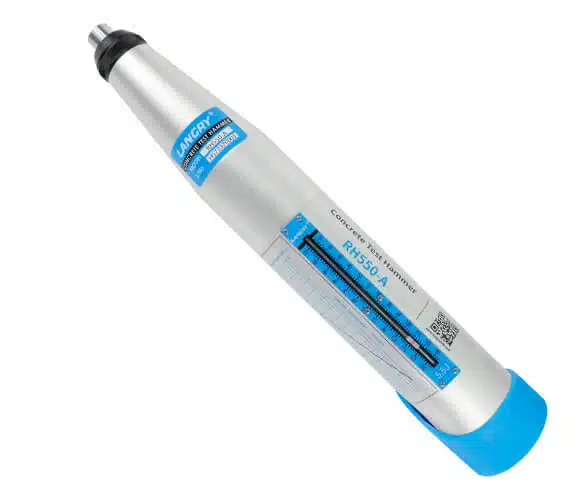

Langry RH550-A Heavy-Duty High-Strength Hammer
Maximum impact energy concrete test hammer designed for massive mass concrete installations, hydraulic dams, deep tunnel linings, and ultra-high-strength concrete (UHPC) mixtures reaching up to 120 MPa.
- Impact Energy: 5.400 J
- Measuring Range: 60 – 120 MPa
- Spring Stiffness: 1000 ± 50 N/m
- Operating Spring Length: 110 ± 0.5 mm
- Spherical Radius: 35 ± 1.0 mm
- Calibration on Anvil: 88 ± 2

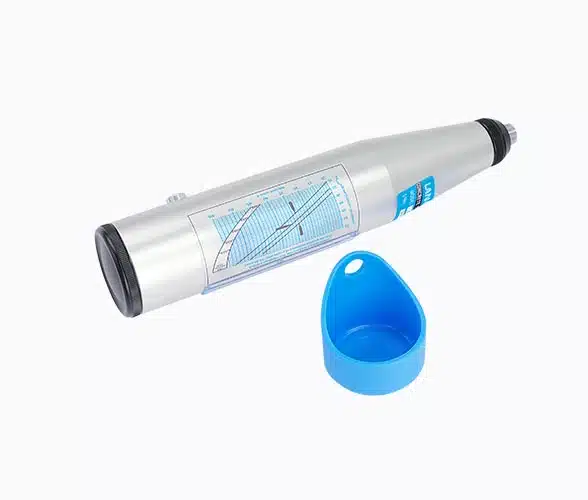

Langry RH75-A Brick & Lightweight Concrete Hammer
Low impact energy test hammer specifically designed for testing solid clay bricks, hollow concrete blocks, lightweight aggregate concrete, and thin structural components without causing shatter damage.
- Impact Energy: 0.735 J (Type L)
- Measuring Range: 10 – 50 MPa
- Target Materials: Common clay bricks, AAC blocks, lightweight concrete
- Spring Stiffness: 260 ± 15 N/m
- Calibration on Anvil: 74 ± 2
- Standards: JGJ/T 23, ASTM C805 modified

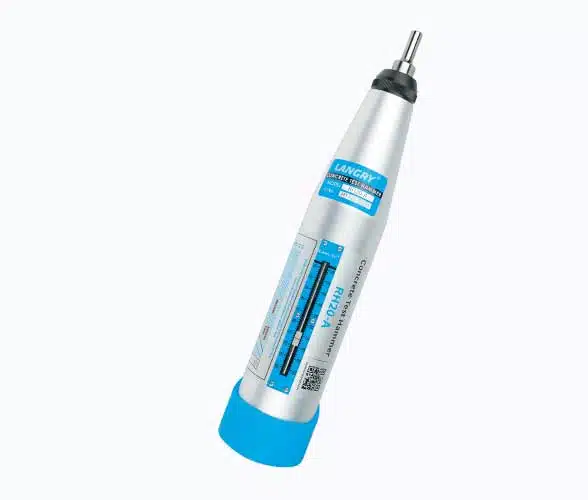

Langry RH20-A Mortar Rebound Hammer
Ultra-low impact energy rebound hammer developed for non-destructive testing of masonry joint mortar, external wall plastering rendering, and low-strength mortars in residential and heritage structures.
- Impact Energy: 0.196 J (Type M)
- Measuring Range: 1.0 – 25.0 MPa
- Target Materials: Masonry bed joint mortar, wall render
- Spring Stiffness: 100 ± 5 N/m
- Calibration on Anvil: 60 ± 2
- Special Feature: Non-destructive evaluation of mortar seams
Langry Testing Anvil (GZ-I / GZ-II / Portable)
High-precision calibration test anvil manufactured from premium tool steel hardened to HRC 60 ± 2. Mandatory requirement per IS 13311-2 and ASTM C805 for daily calibration verification before and after testing.
- Core Hardness: HRC 60 ± 2 (Tool Alloy Steel)
- Nominal Calibration Value: 80 ± 2 (For Type N Hammers)
- Weights Available: 16 kg (Standard bench) • Portable versions
- Compatibility: RH225-A, RH225-B, RH450-A, RH550-A, RH75-A
- Requirement: Calibration check before each test cycle
Rebound Hammer Selection Matrix
Compare verified technical parameters across the official Langry rebound hammer series to select the optimal model for your application.
| Model | Hammer Type | Impact Energy | Strength Range | Spring Stiffness | Anvil Value | Primary Application |
|---|---|---|---|---|---|---|
| RH225-B | Digital (OLED + Bluetooth) | 2.207 J | 10 – 60 MPa | 785 ± 30 N/m | 80 ± 2 | General structural concrete with on-site paperless reporting |
| RH225-A | Mechanical Pointer (Type N) | 2.207 J | 10 – 60 MPa | 785 ± 30 N/m | 80 ± 2 | Columns, slabs, beams, building frames (IS 13311-2 standard) |
| RH450-A | High Strength Mechanical | 4.500 J | 60 – 100 MPa | 900 ± 40 N/m | 88 ± 2 | High-rise pillars, mega bridge girders, high-performance concrete |
| RH550-A | Heavy-Duty Mechanical | 5.400 J | 60 – 120 MPa | 1000 ± 50 N/m | 88 ± 2 | Dams, hydraulic powerhouses, deep tunnel linings, UHPC |
| RH75-A | Low Energy (Type L) | 0.735 J | 10 – 50 MPa | 260 ± 15 N/m | 74 ± 2 | Clay bricks, lightweight aggregate concrete, thin precast slabs |
| RH20-A | Mortar Type (Type M) | 0.196 J | 1.0 – 25 MPa | 100 ± 5 N/m | 60 ± 2 | Building mortar seams, wall rendering, plaster strength verification |
Testing Methodology & Compliance Guide
Rebound hammer testing estimates compressive strength by driving an elastic impact plunger against the concrete surface and measuring the rebound distance of the spring-controlled mass.
- Surface Preparation: Use the supplied carborundum grinding stone to eliminate surface carbonation, laitance, or rough coatings before striking.
- Impact Matrix: Execute 10 to 12 impact readings spaced at least 25 mm apart per test location as specified in IS 13311 (Part 2).
- Angle Correction: Digital models (like the RH225-B) automatically perform trigonometric impact angle corrections (horizontal, upward, or downward).
- Anvil Verification: The rebound hammer must produce readings within the certified tolerance (e.g. 80 ± 2 for Type N) on a verified steel testing anvil.
