Ultrasonic Pulse Velocity (UPV) Testers
Precision non-destructive testing (NDT) instruments for assessing internal concrete quality, structural uniformity, honeycombs, crack depths, and dynamic modulus per IS 13311 (Part 1), ASTM C597, and EN 12504-4.
Ultrasonic Pulse Velocity Instruments
Authorized supplier of industry-leading UPV testing systems from MATEST, PROCEQ, and LANGRY. Every system is supplied complete with calibrated 54 kHz piezoelectric transducers, coupling gel, reference bars, and transport cases.

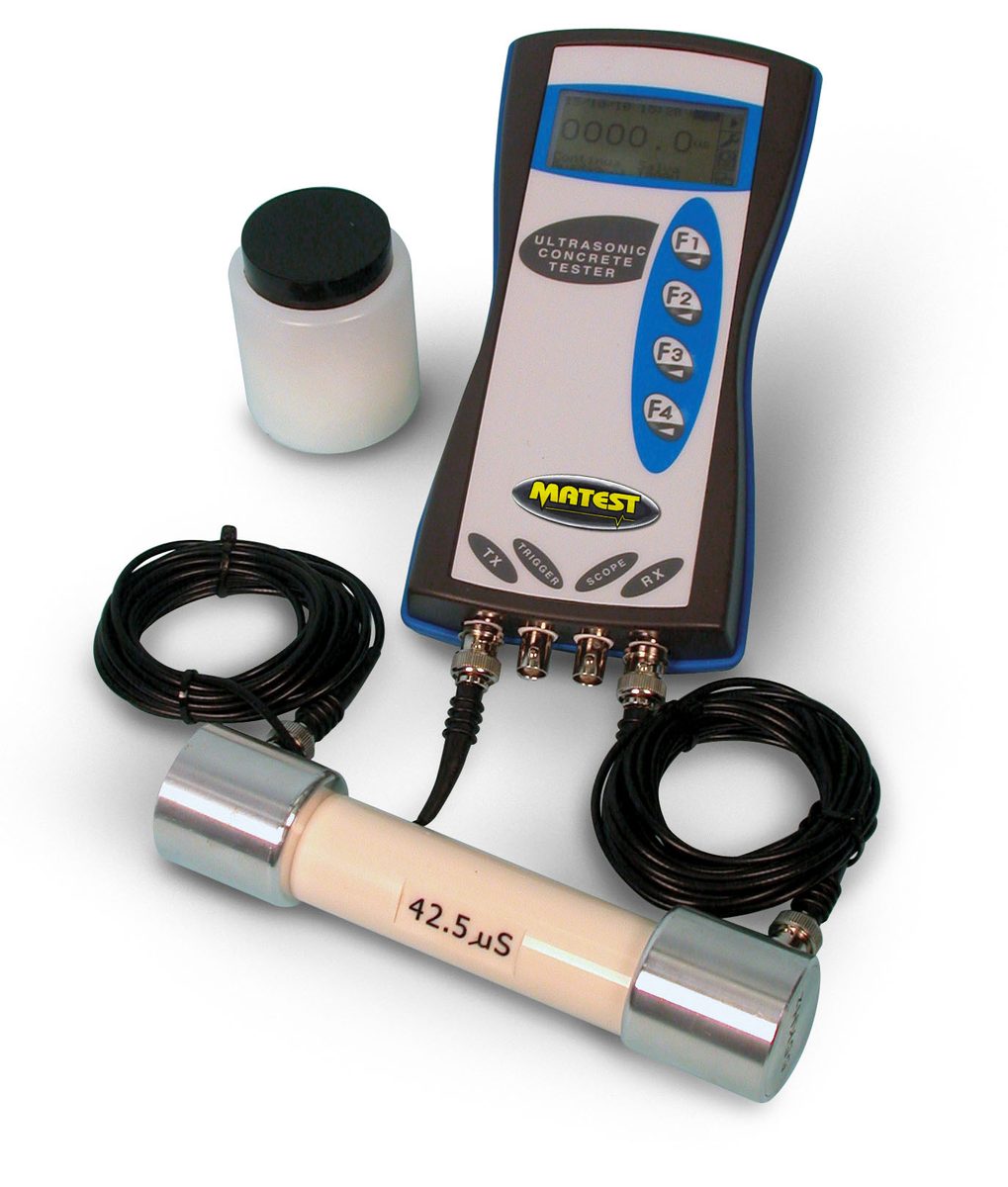

MATEST C369N High-Performance UPV Tester
Advanced Italian ultrasonic testing instrument featuring graphic waveform display, automatic pulse velocity computation, transit time measurement, and high-capacity internal data logging for on-site concrete diagnostics.
- Transit Time Range: 0.1 to 9999.9 µs
- Time Resolution: 0.1 µs
- Transducers: Pair of 54 kHz piezoelectric probes
- Display: High-resolution backlit graphic LCD
- Transmitter Pulse: 1200V / 2500V selectable excitation
- Standards: IS 13311-1, ASTM C597, EN 12504-4
PROCEQ Pundit Lab Ultrasonic Pulse Velocity Instrument
The global benchmark for ultrasonic testing of concrete. Features laboratory-grade pulse timing accuracy, adjustable transmitter voltage, variable gain stages, and direct PC real-time data streaming via Punditlink software.
- Range: 0.1 to 9999 µs
- Resolution: 0.1 µs
- Pulse Voltage: 125 V, 250 V, 350 V, 500 V selectable
- Gain Stages: 1x, 2x, 5x, 10x, 20x, 50x, 100x, 200x, 500x, 1000x
- Sensor Compatibility: 24 kHz up to 500 kHz transducers
- PC Software: Punditlink for analysis, waveforms & report generation
PROCEQ Pundit Lab+ Enhanced UPV Instrument
Extended capability edition of the Pundit Lab platform featuring integrated compressive strength correlation, automatic surface velocity measurements, dynamic E-modulus computation, and on-board memory for up to 500 tests.
- Calculation Modes: Pulse velocity, path length, crack depth, E-modulus
- Data Logging: Up to 500 complete measurements in non-volatile memory
- Display: Integrated LCD with backlighting
- Transmission Modes: Direct, indirect (surface), and semi-direct
- Strength Estimation: User-definable conversion curves
- Standards: IS 13311-1, ASTM C597, EN 12504-4, BS 1881-203
PROCEQ Pundit 200 (PL-200) Touchscreen UPV System
Flagship digital touchscreen system featuring real-time A-scan RF signal inspection, 2D line scanning, area scan uniformity heatmaps, and precise crack depth measurement algorithms for critical civil engineering infrastructure.
- Display: 7" rugged colour touchscreen (800×480 pixels)
- Scanning Capabilities: Line scan, Area scan matrix & data logging
- Transmitter Voltage: 100 V to 450 V biphase pulse excitation
- Crack Depth: Dedicated automated crack depth evaluation routine
- Memory: 8 GB internal flash (thousands of scans with full waveforms)
- Sensors: Standard 54 kHz, Shear wave (dry contact), exponential probes
LANGRY UPV2100 Integrated Digital UPV Tester
Rugged portable ultrasonic pulse velocity tester engineered for rapid on-site assessment of structural concrete integrity. High-contrast display, comprehensive diagnostic routines, and straightforward keyboard operation.
- Time Range: 0.1 – 9999.9 µs
- Timing Precision: ±0.05 µs
- Transducers: Pair of 54 kHz high-sensitivity probes with BNC leads
- Testing Modes: Direct, semi-direct, and indirect surface velocity
- Storage: 200 components / 4,000 data test points
- Kit Includes: Zero-time reference calibration bar, coupling gel, transit case
Concrete Quality Grading via Pulse Velocity
Criterion for concrete quality grading based on ultrasonic pulse velocity per IS 13311 (Part 1): 1992 (Reaffirmed 2018) Table 2 for structural concrete members.
| Sl. No. | Pulse Velocity (km/second) | Concrete Quality Grading | Typical Structural Condition |
|---|---|---|---|
| 1 | Above 4.5 km/s (> 4500 m/s) | Excellent | High-density dense matrix, virtually free of voids, cracks, or honeycombing. |
| 2 | 3.5 to 4.5 km/s (3500 – 4500 m/s) | Good | Standard structural concrete meeting design specifications with sound consolidation. |
| 3 | 3.0 to 3.5 km/s (3000 – 3500 m/s) | Medium | Moderate quality, potential slight porosity, low compaction, or micro-cracking. |
| 4 | Below 3.0 km/s (< 3000 m/s) | Doubtful | Significant internal honeycombs, large voids, delamination, or severe damage. |
UPV Transducer Arrangement & Transmission Arrangements
Ultrasonic pulse velocity is calculated as V = L / T, where L is the path length between transducers and T is the transit time. Depending on site access, three transducer arrangements are utilized:
1. Direct Transmission
Transducers on opposite parallel surfaces. Maximum pulse energy transmission; highest diagnostic accuracy for columns, beams, and slabs.
2. Semi-Direct Transmission
Transducers placed on adjacent perpendicular surfaces (e.g. beam corners). Excellent when only corner access is accessible.
3. Indirect / Surface Transmission
Both transducers on the same surface. Used for pavement slabs, retaining walls, and determining depth of surface cracks.
